The SPT series vertical ceramic pump is a vertical centrifugal slurry pump that is submerged in the liquid and used for conveying abrasive, coarse-grained, high-concentration slurry. It does not require any shaft seals or shaft seal water and can operate normally even under conditions of insufficient suction volume.

The flow passage components of the SPT series submerged pump are made of silicon carbide (SPT) ceramic, which has good wear and corrosion resistance and a long service life. It is particularly suitable for various sump pumps in mining coal and desulfurization systems.

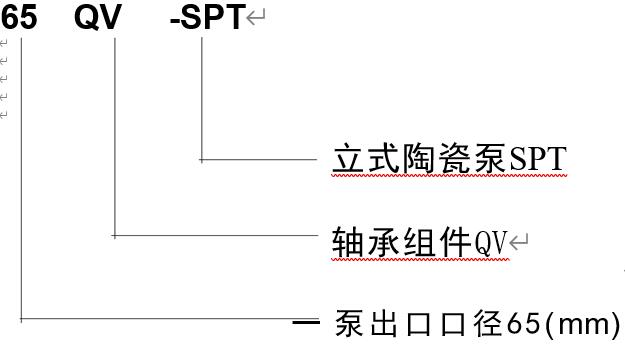

Model Significance

Performance Parameter Table of SPT Series Vertical Ceramic Pumps

Performance Range of SPT Vertical Ceramic Pumps

Q: 5m³/h~1089m³/h H: 2m-45m

Diameter: 40mm-300mm

Structural Features of SPT Vertical Ceramic Pumps

● Adopting a vertical cantilever structure.

● The silicon carbide ceramic impeller is adopted, equipped with a disassembly ring, facilitating the removal of the impeller.

● All flow passage components are made of ceramic materials, which exhibit excellent wear and corrosion resistance, thereby enhancing the overall service life of the pump.

● The cartridge bearing assembly adopts a high-capacity bearing design, and the bearings are lubricated with grease.

● The gap between the adjustable impeller and the guard plate can be adjusted to ensure efficient operation of the pump.

●No need for any shaft seal.

● The pump and driver can be directly connected or driven by a V-belt.
